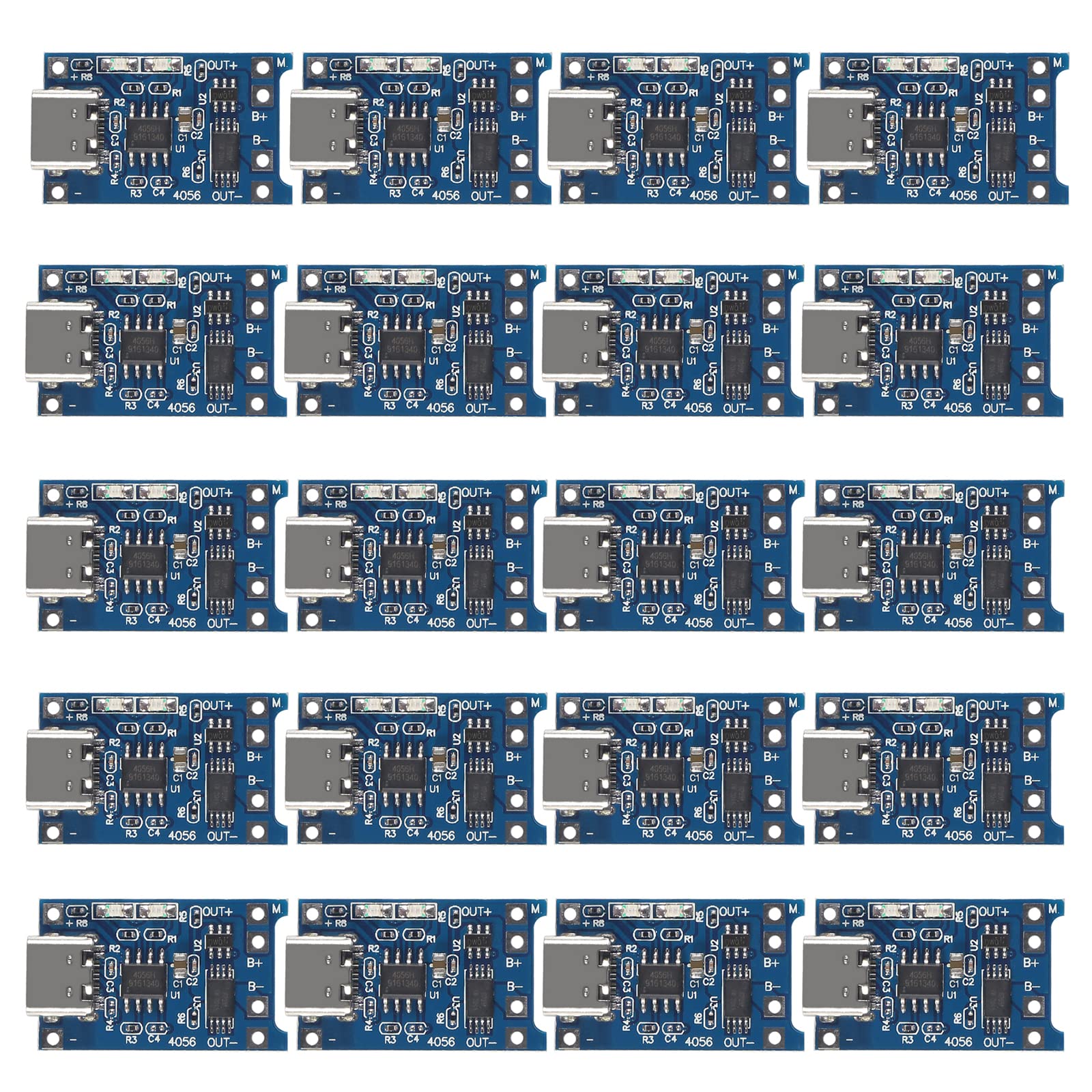

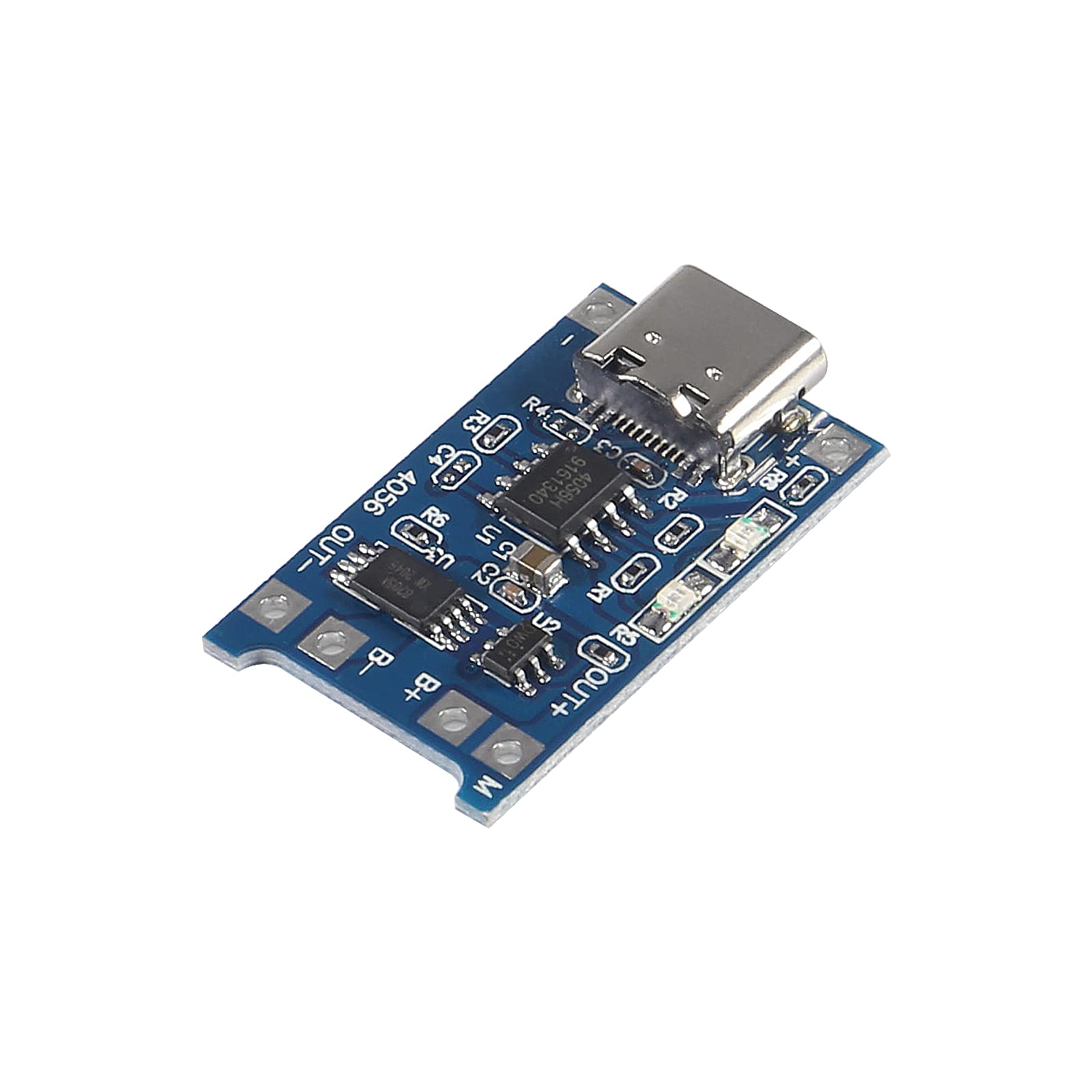

20pcs TP4056 Type-C USB 5V 1A 18650 Lithium Battery Charger Module with Dual Protection - Li-ion Charging Board TC4056A for DIY Electronics, Power Banks, and Solar Projects
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:8 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:68438081
Product Description
Module Parameter:Input interface: Type-C USBThe input voltage: 4.35-6V (recommended voltage 5 v)Charge cut-off voltage: 4.2 V + / - 1%Maximum charging current output: 1000 maThe battery overcharge protection voltage: 4.28 VBattery overcharge lifting voltage: 4.00 VThe battery discharge protection voltage: 3.0 VBattery Discharge Termination Voltage: 3.2VBattery: Over-Current Protection Current 3AHOW TO USE:1.There May Be NO Output Voltage When Connected with Battery At First Time,At this time, Please Try to Activate the Protection Circuit By Charger with 5V Voltage.2. When Input with a Mobile Phone Charger, Please Make Sure that Output of the Charger Must Be 1A or Above.Package Contents:20 x TP4056 Type-C Charger Module with Dual Protection Function
Product Features

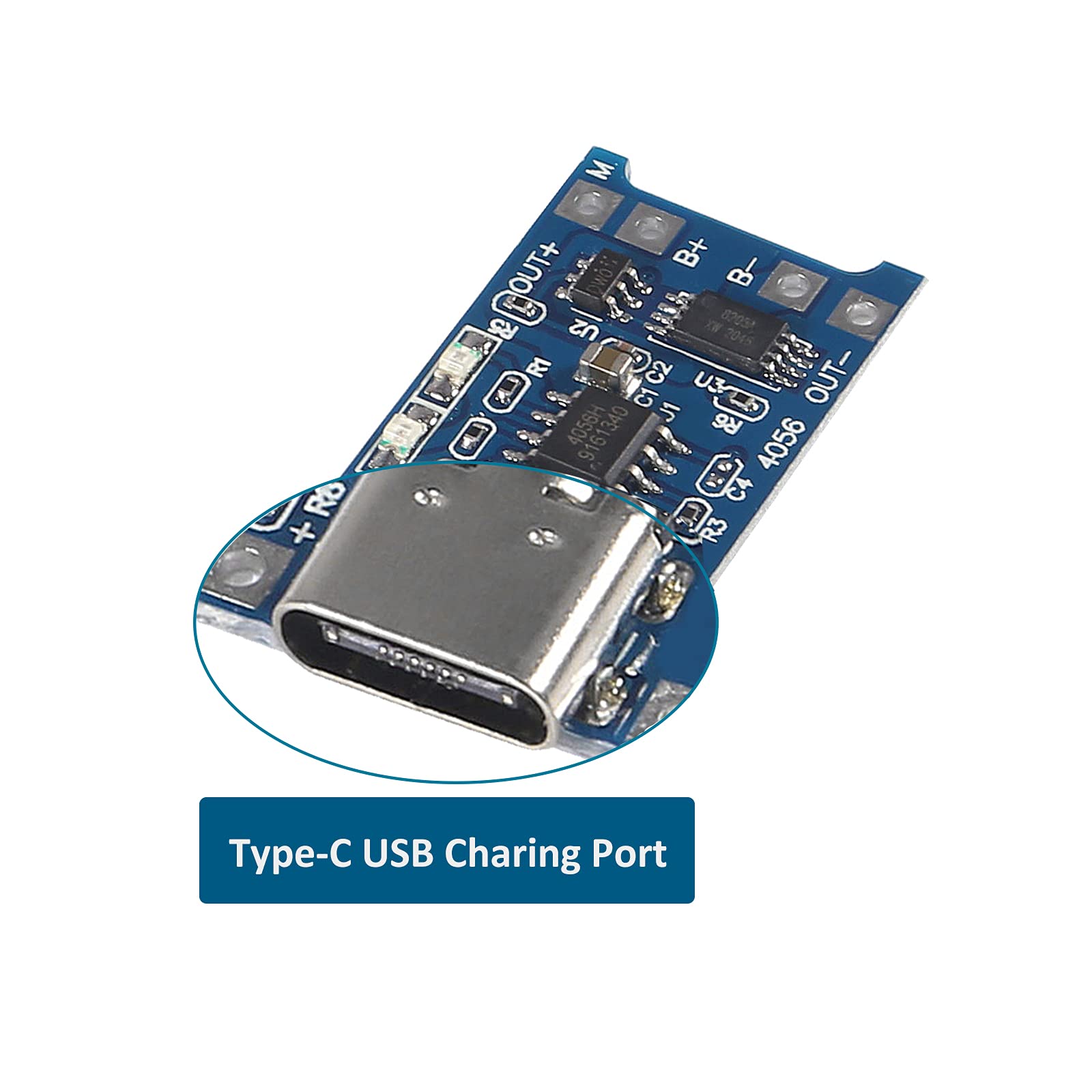

Input Interface Type-C USB
Input Voltage 4.35-6V (Recommended Voltage 5V)
Two-in-One Charging and Discharging Protection Function
The Module Come With Solder Joints for Input Voltage Wiring,Which is Convenient for DIY

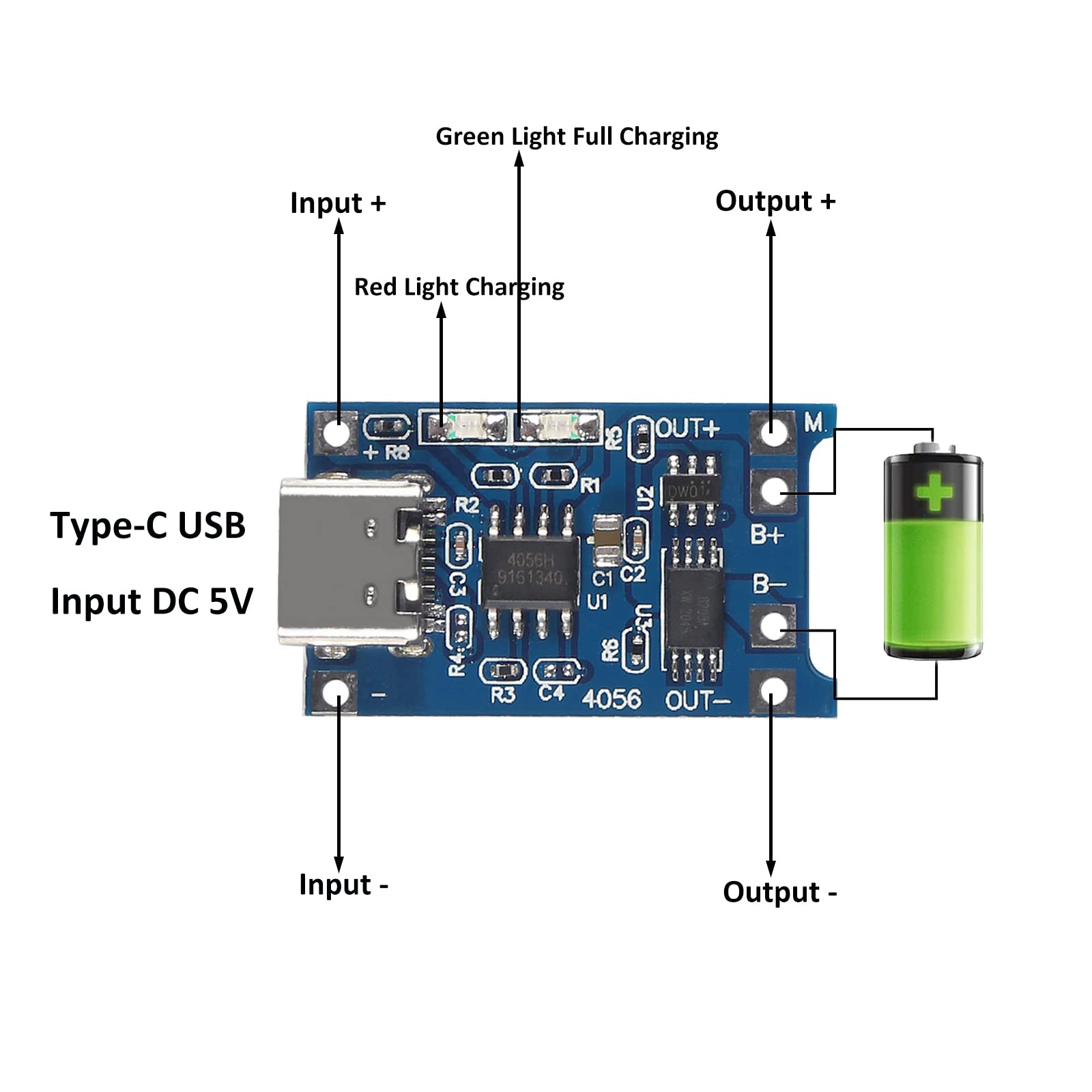

Light StateNO Load the Light NOT Bright, Red Light for Recharging,Green Light is FULL Charger
