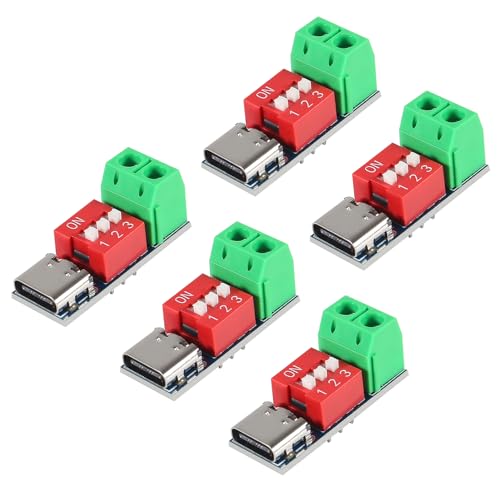

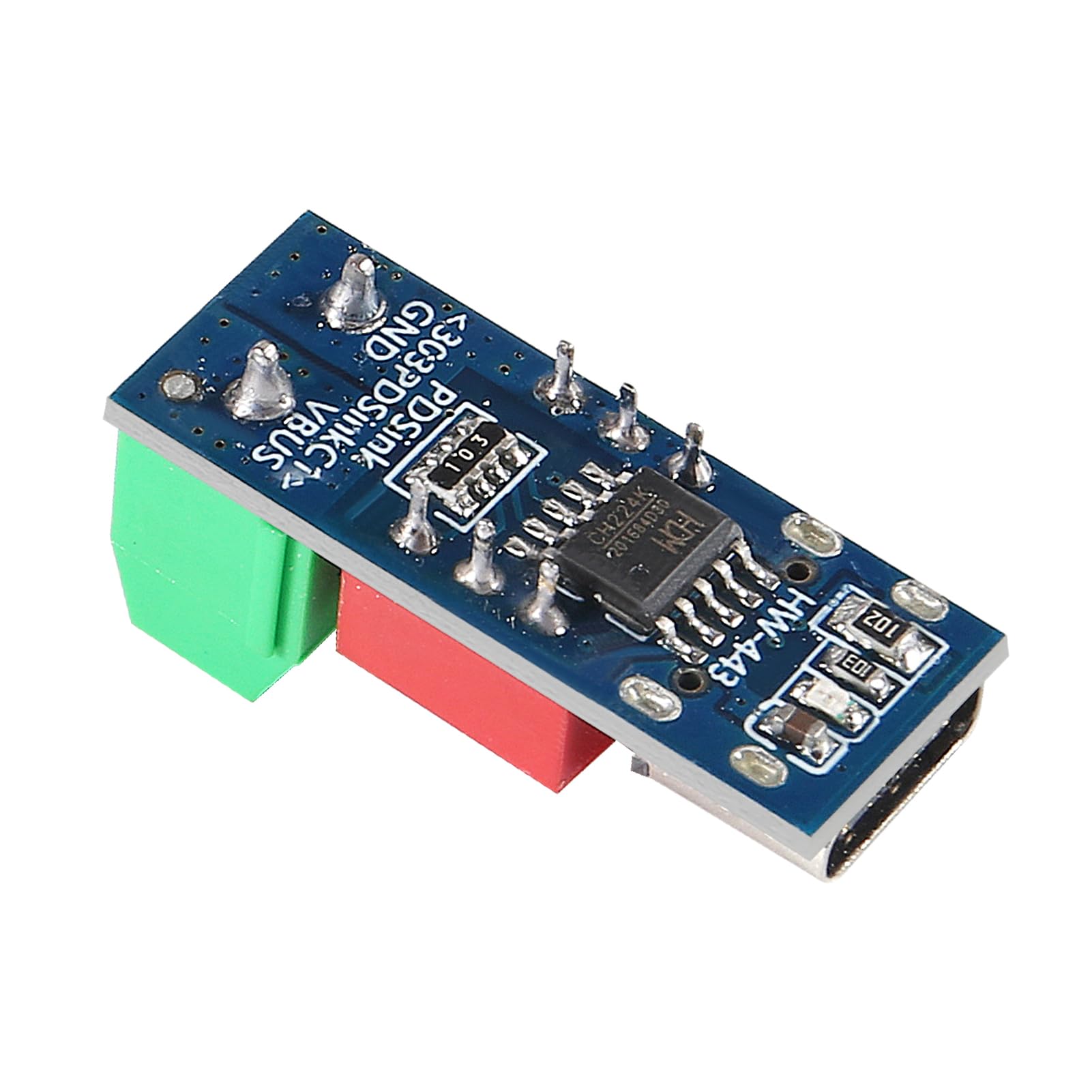

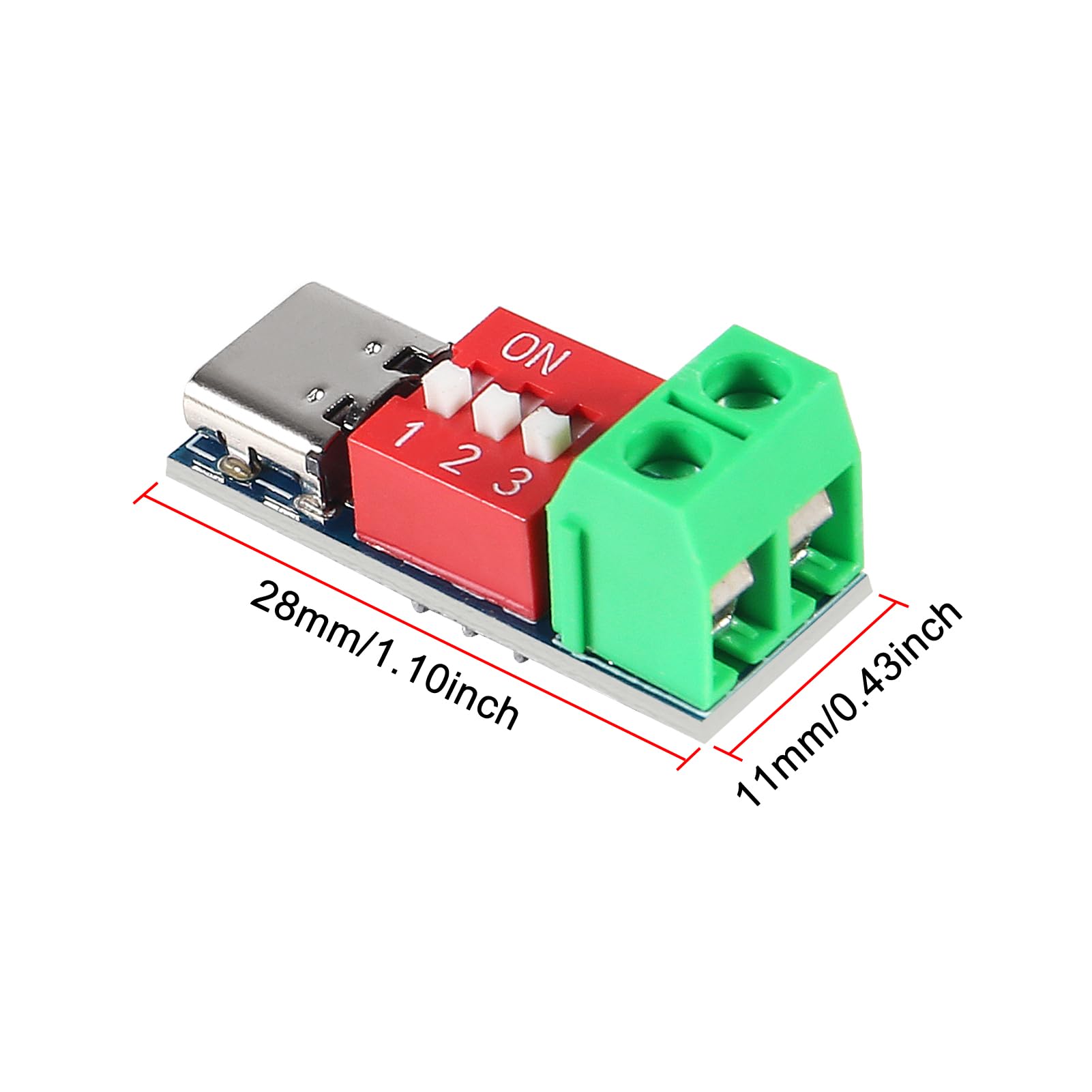

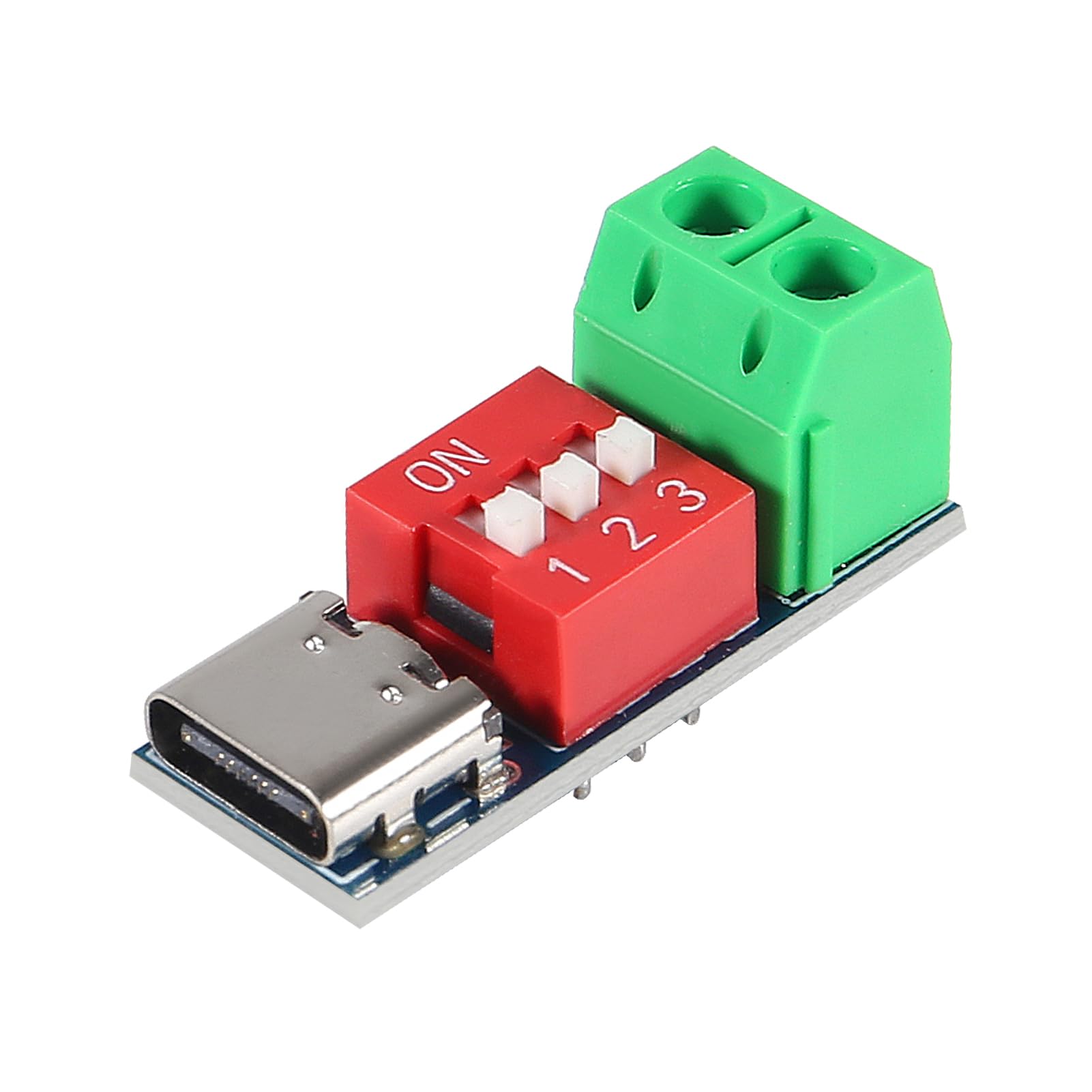

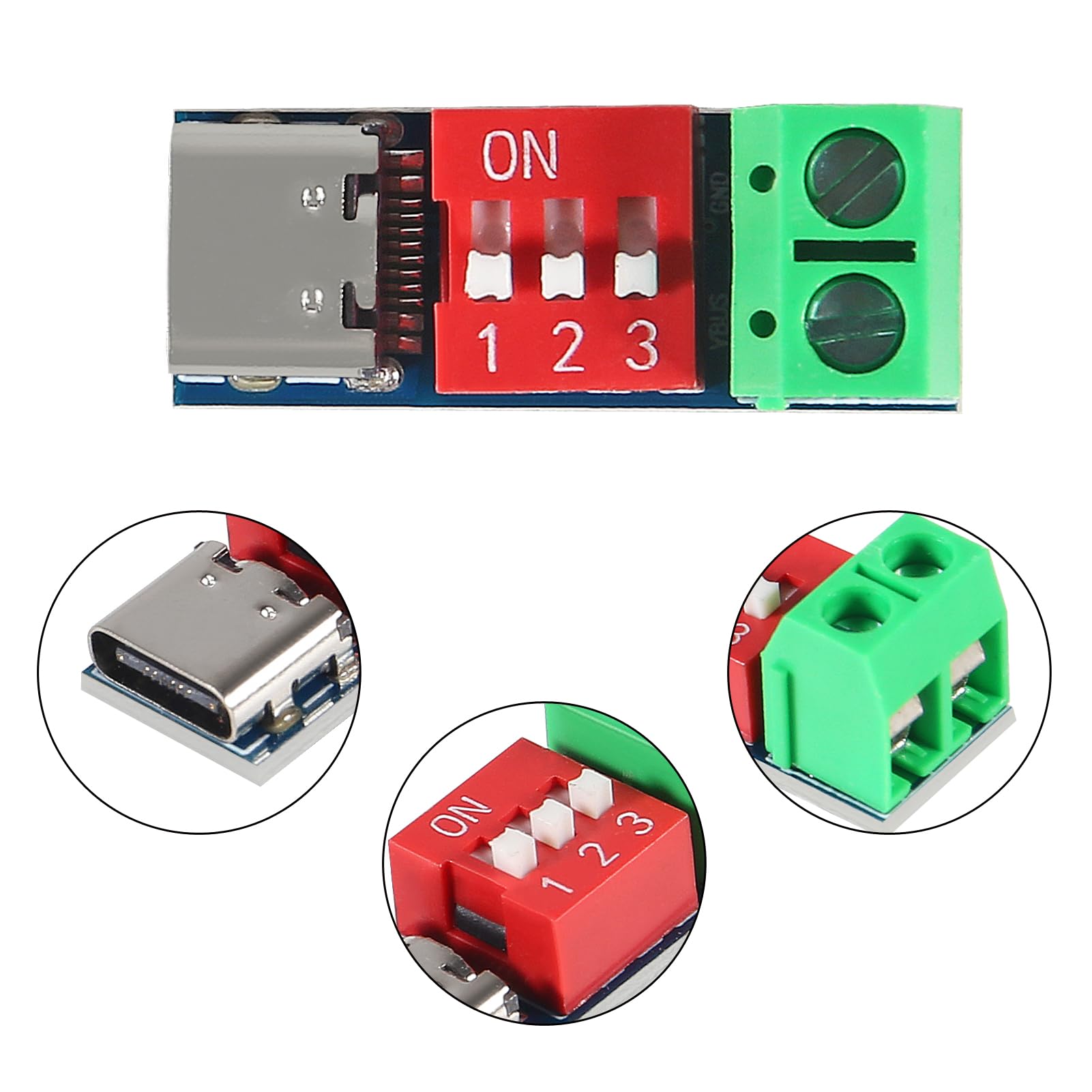

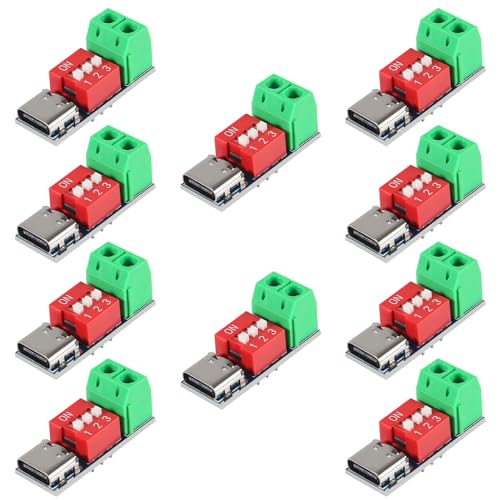

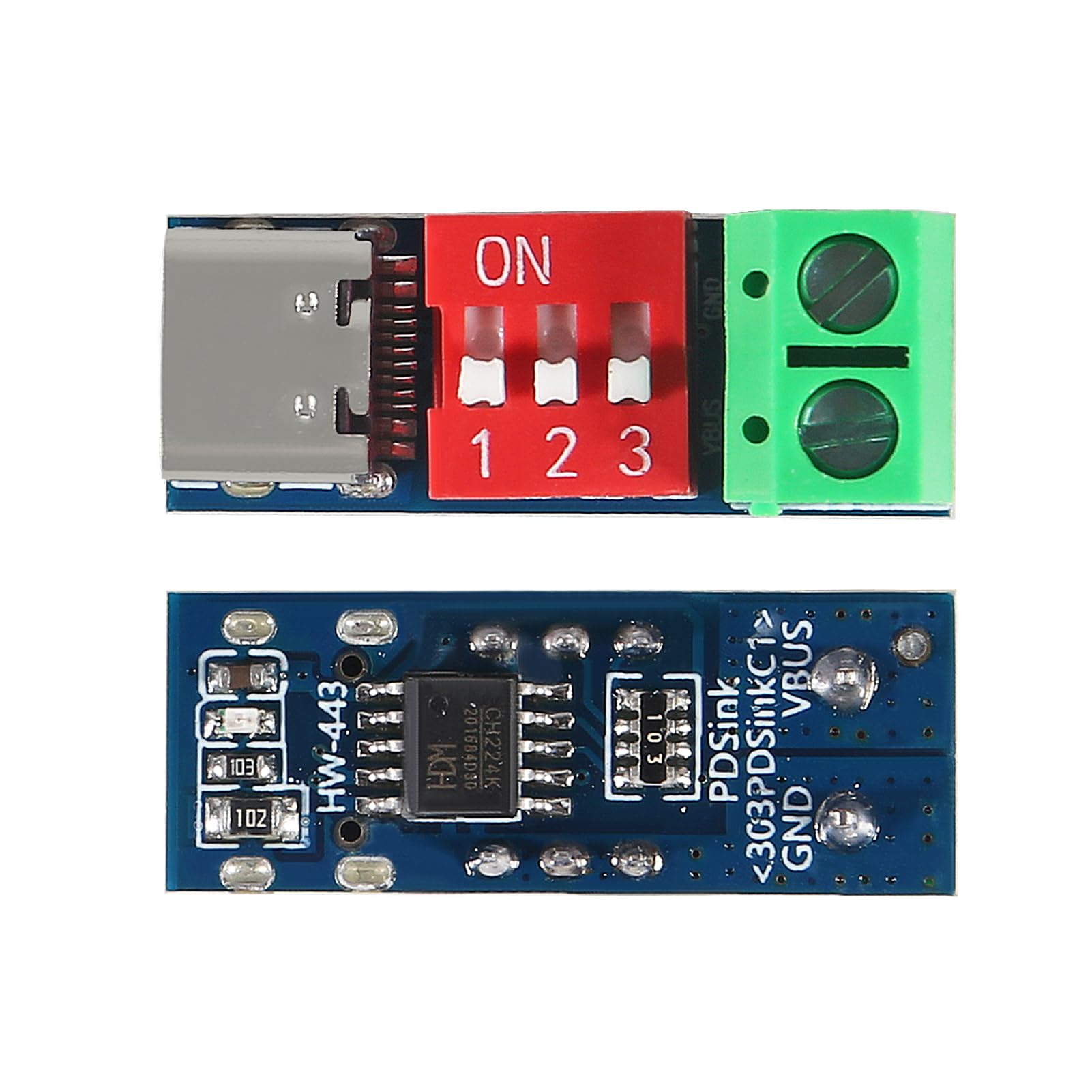

3PCS USB-C PD Trigger Board Module - Fast Charge 5V/9V/12V/20V Power Delivery Boost Converter for Laptops, Phones & Tablets | High-Speed USB Type-C Charging Solution for DIY Electronics & Power Banks

This review is for 3PCS USB-C PD Trigger Board Module PD/QC Decoy Board Fast Charge USB Type-c to 5V9V12V20V High Speed Charger Power Delivery Boost Module. As of this review the product listing is not mixed with other products, only the 3/5/10pc variants.So far I have used this in 2 projects to power my gears with USB-C instead of various barrel jacks.One is Sony Blu-ray player BDP-S6700 that takes 12V/1A. The plug for these Blu-ray players is EIAJ-04 / EIAJ IV / Philmore 2559, something that is not widely available from Amazon, and those you can find charges more than this 3pc set. So I directly soldered wires to the circuit board to power it using USB-C. This leaves a pigtail to the player but I don’t mind. The USB meter says it draws 0.75A max while playing and this trigger board handles it well. Just note that 12V is something not every charger will provide since it is optional in USB PD specifications. It also works with my QC charger (again, check if it provides 12V at all).The other is Optoma ML750 projector. The projector takes 19V/3A. Using the 20V setting it also powers it fine. The original barrel jack measures 6mm as the outer diameter, but I used a 5.5 x 2.1mm jack and it works, it doesn’t have that nice click when plugged in but it is not loose so the projector will turn off either, so I don’t have to look for the exact dimension of the plug used. The USB meter says it draws 2.4A when the fan is in high gear, which is not something every such USB PD trigger board can do. I don’t have a project that draws 3A or 5A to say it will be fine in those situations but 2.4A is no problem.There is this red LED that lights up when it is powered. Even with no load the LED is hot to the touch. The chip that’s next to it is not hot even powering my projector.This board is great in that no soldering is needed, with the obvious tradeoff that the voltage selection switch and the output terminal takes more space than if you just solder it directly to the board.Next I’m going to wire this to power my Asus fanless laptop UX305 that takes a 4.0 x 1.35mm barrel jack - I’m just waiting for that jack to be delivered. That one is 19V/2.37A so I’m sure it will work too since the current is less than my projector. No need to rely on different power supplies!
